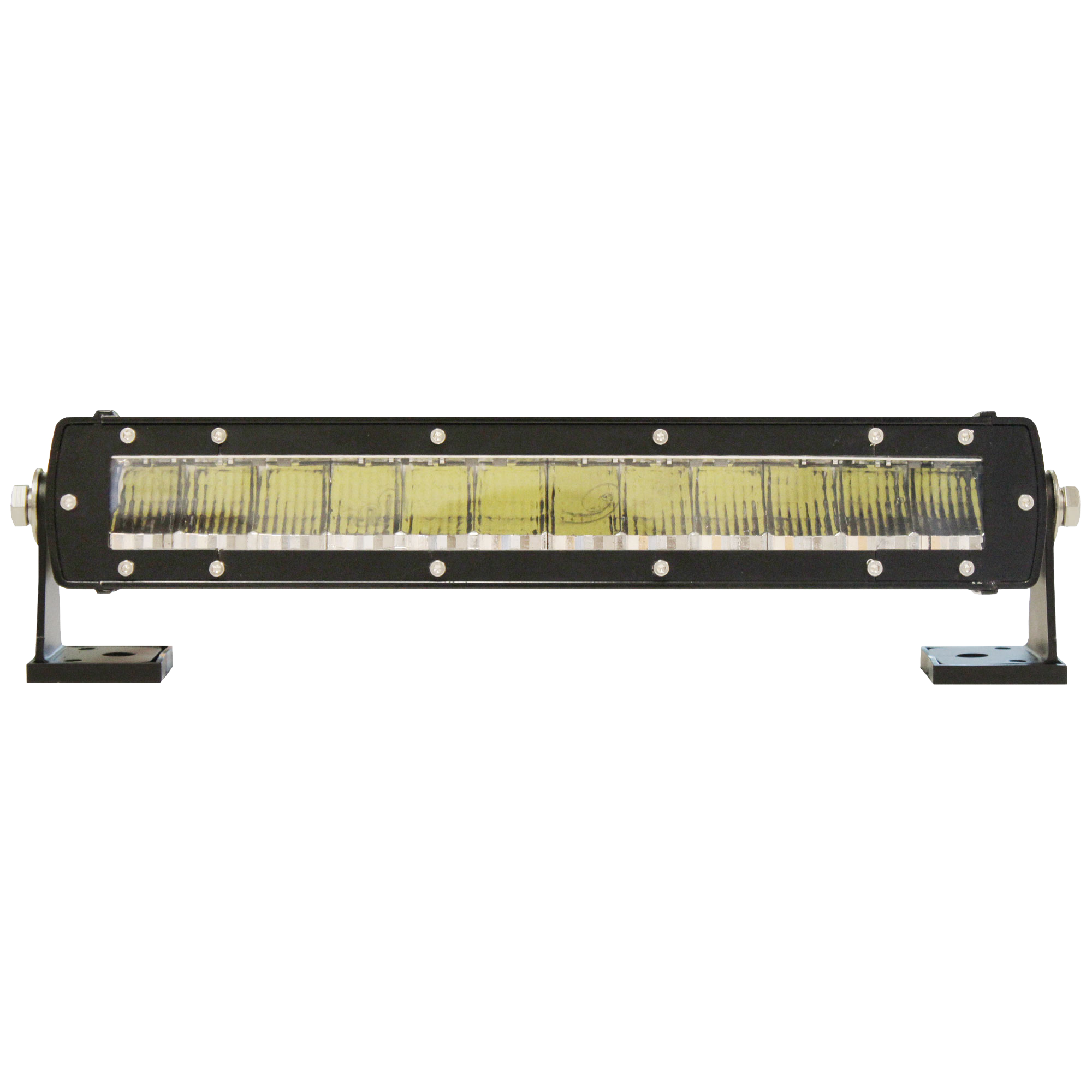

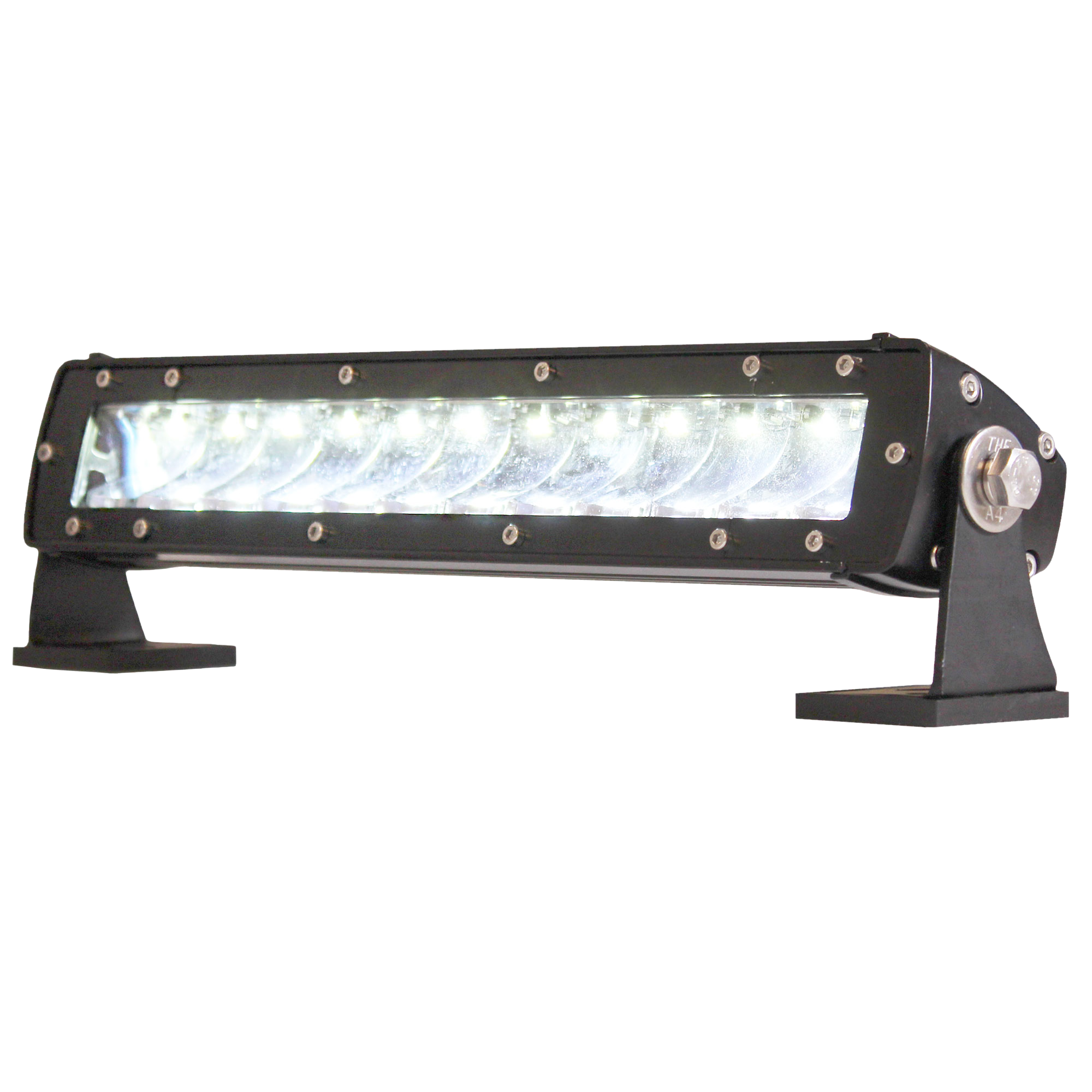

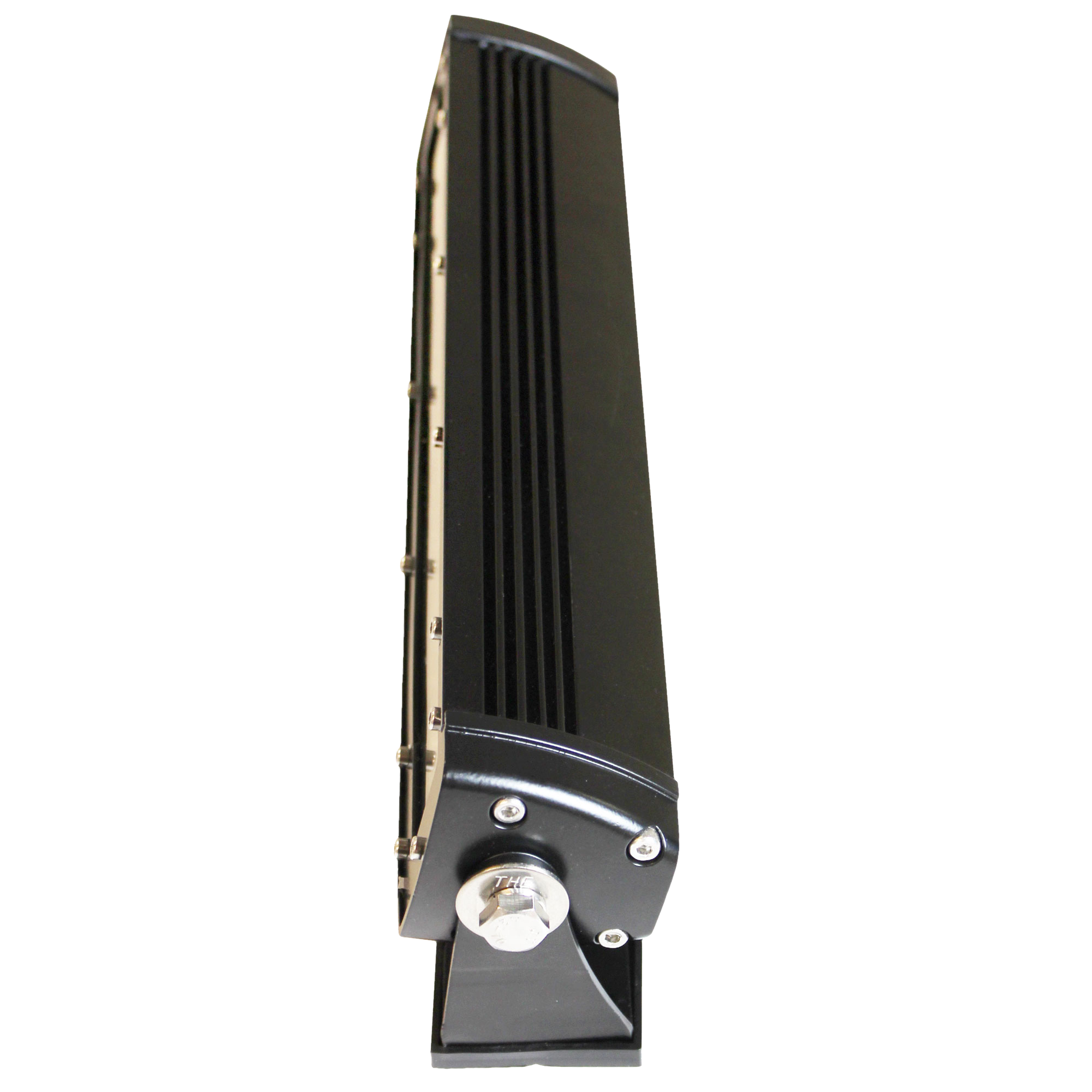

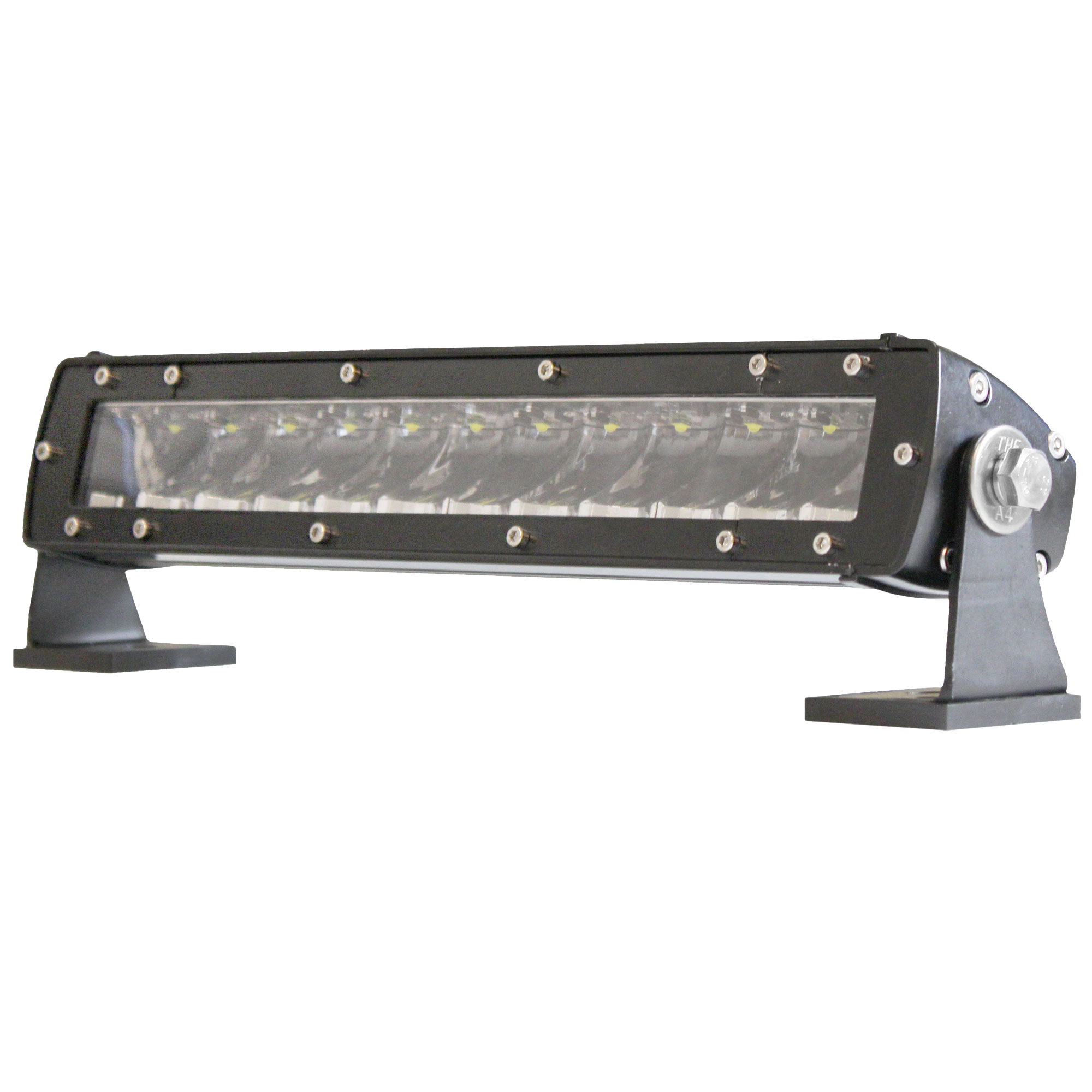

SX Series 10” Class 60 Watt LED Light Bar. This complex lense single row light bar features white LED’s arranged 90 degrees away from view to create a blackout look that also packs more LED’s in a tighter space for maximum range in a compact package. The spot beam shines nearly one mile in the 50″ class.

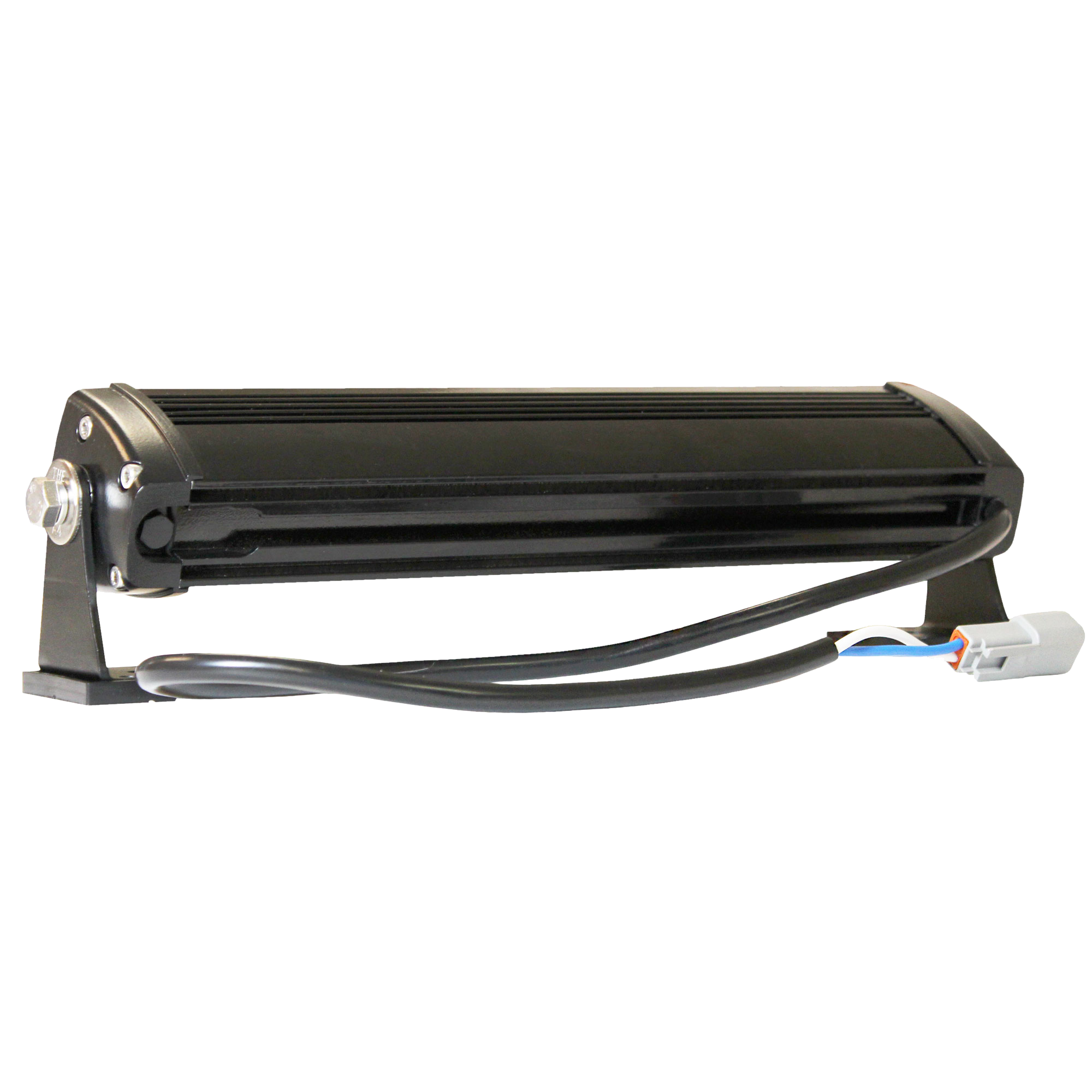

Great for mounting on your truck, ATV/UTV, or Side by Side along with some Pro Pod XL lights to hit all areas with maximum light. Attach almost anywhere with Jammy OffRoad multi-mount brackets that can be bolted or screwed on, even on curved surfaces like a hood or roof. Connect with simple 2-Wire setup using included DT04-2P connectors and generous 18″ lead wire.
Built for extreme durability in the harshest conditions. Max life UV protected polycarbonate affixed to aluminum housing using Jammy OffRoad’s perma-seal bonding process creates a fixture with IP69K rating that is literally hammer proof.
Specifications
- Rated Power: 60 Watts
- Actual Power: 48 Watts
- Amps at 12.5 Volts: 3.84
- LED: 12x OSRAM 5-Watt
- Lumens (effective): 4,544
- Lux at 10 Meters: 689
- Beam Distance at 1 Lux: 599
- Max Beam Distance (0.25 lx): 1,198 Feet
- See dimensional chart for actual size
Click Here for help understanding power figures, beam info,and IP rating
Universal Features:
- OSRAM LED’s and Thermally Regulated Electronics
- Included Side Mount & Adjustable Rear Mount Brackets
- Rubber (PVC) Isolating Pads for Brackets
- Low Profile Aluminum No-Whistle Housing
- Breather Vent to Prevent Moisture Buildup
- Wide 10-30 Volt Operating Range
- Top Grade Polycarbonate Lens
- Multi-Core Jacketed Lead Wire
- Stainless Steel Hardware
- IP69K Rated
