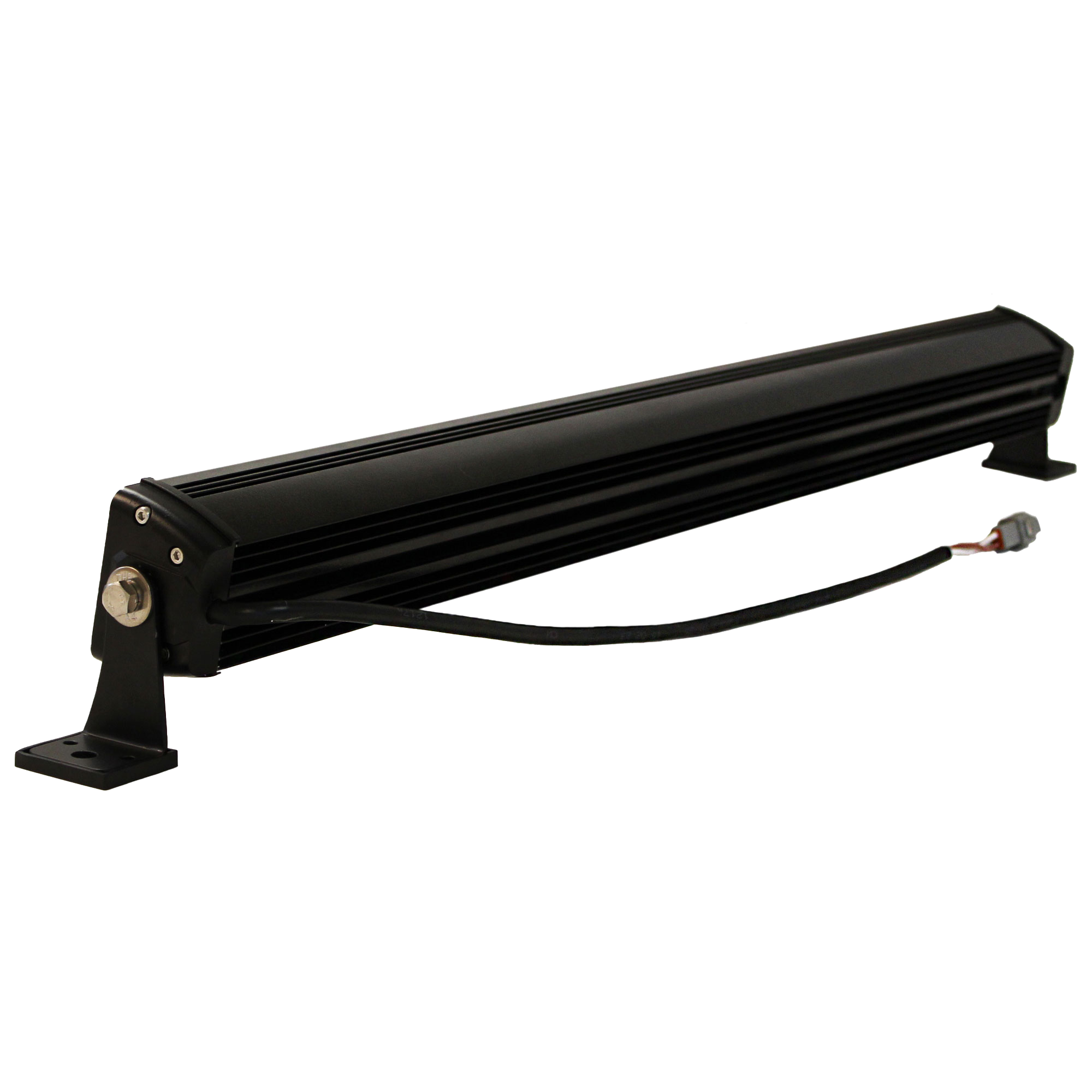

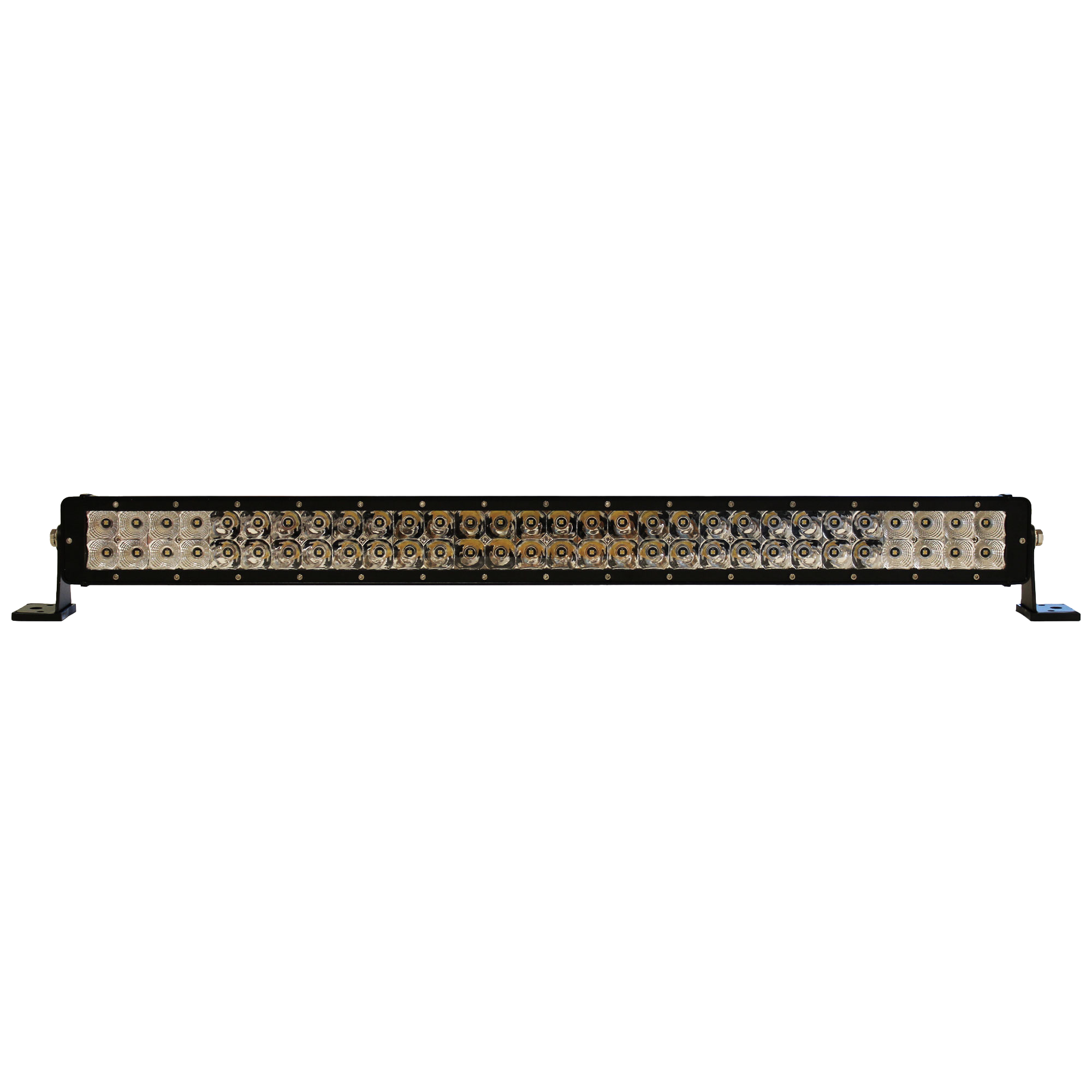

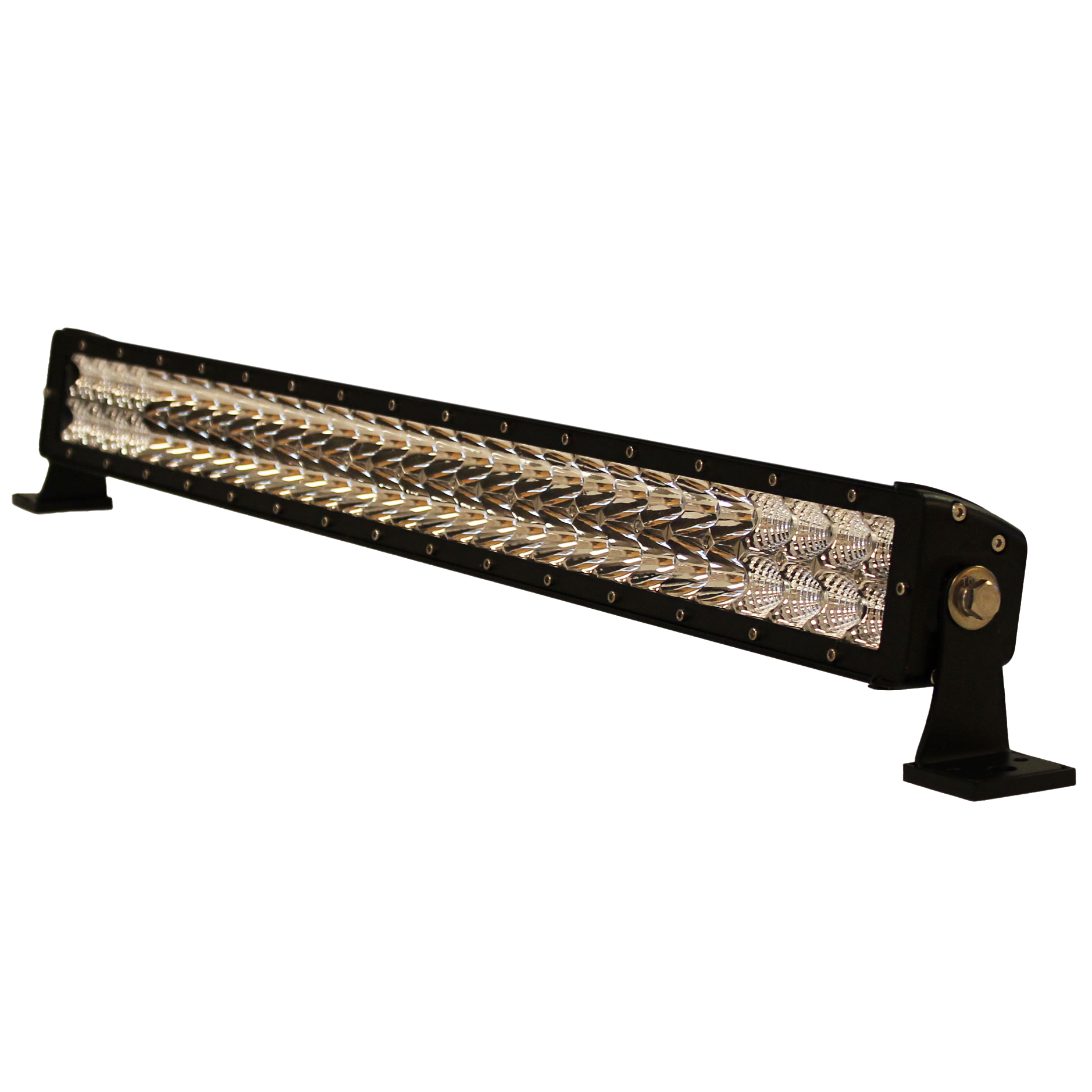

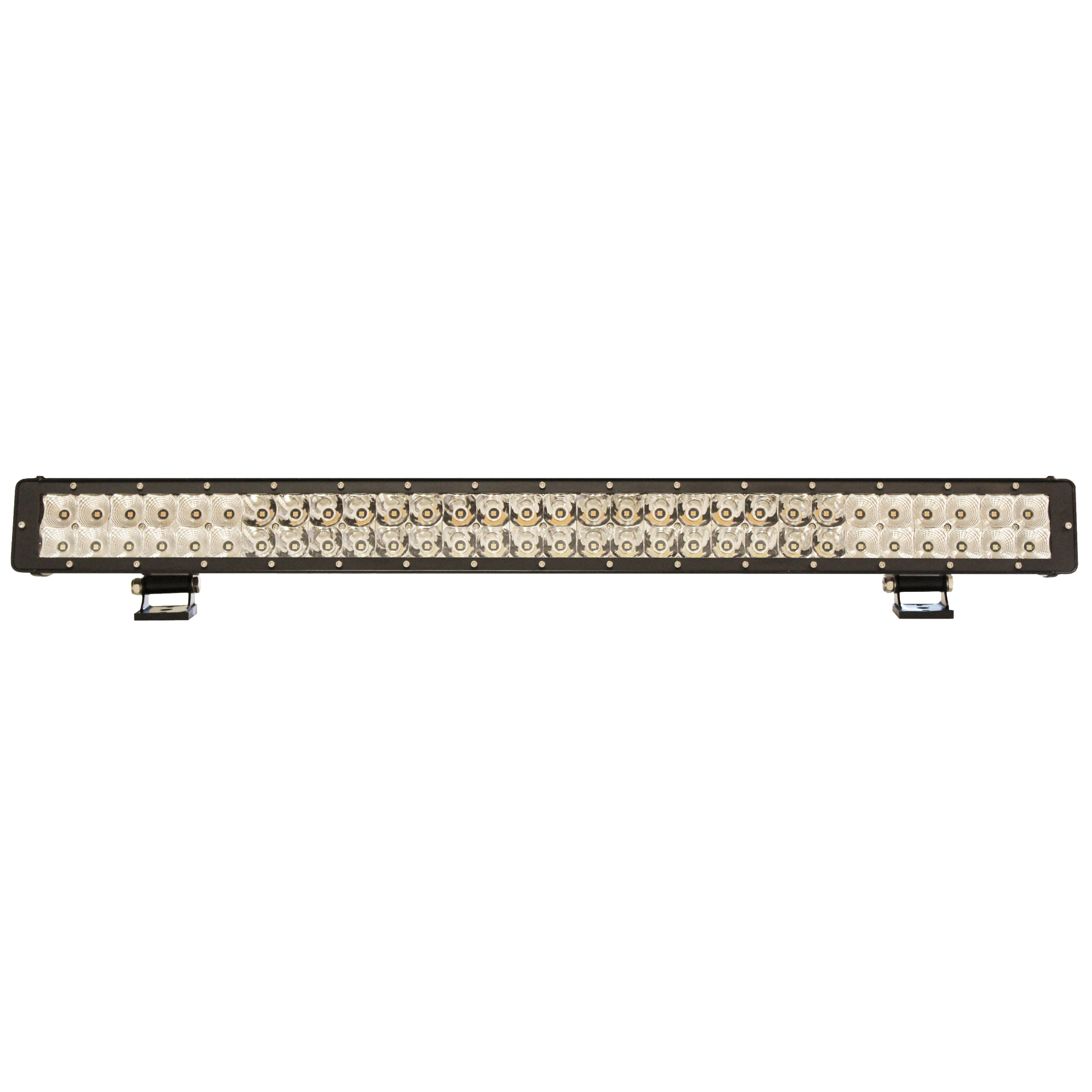

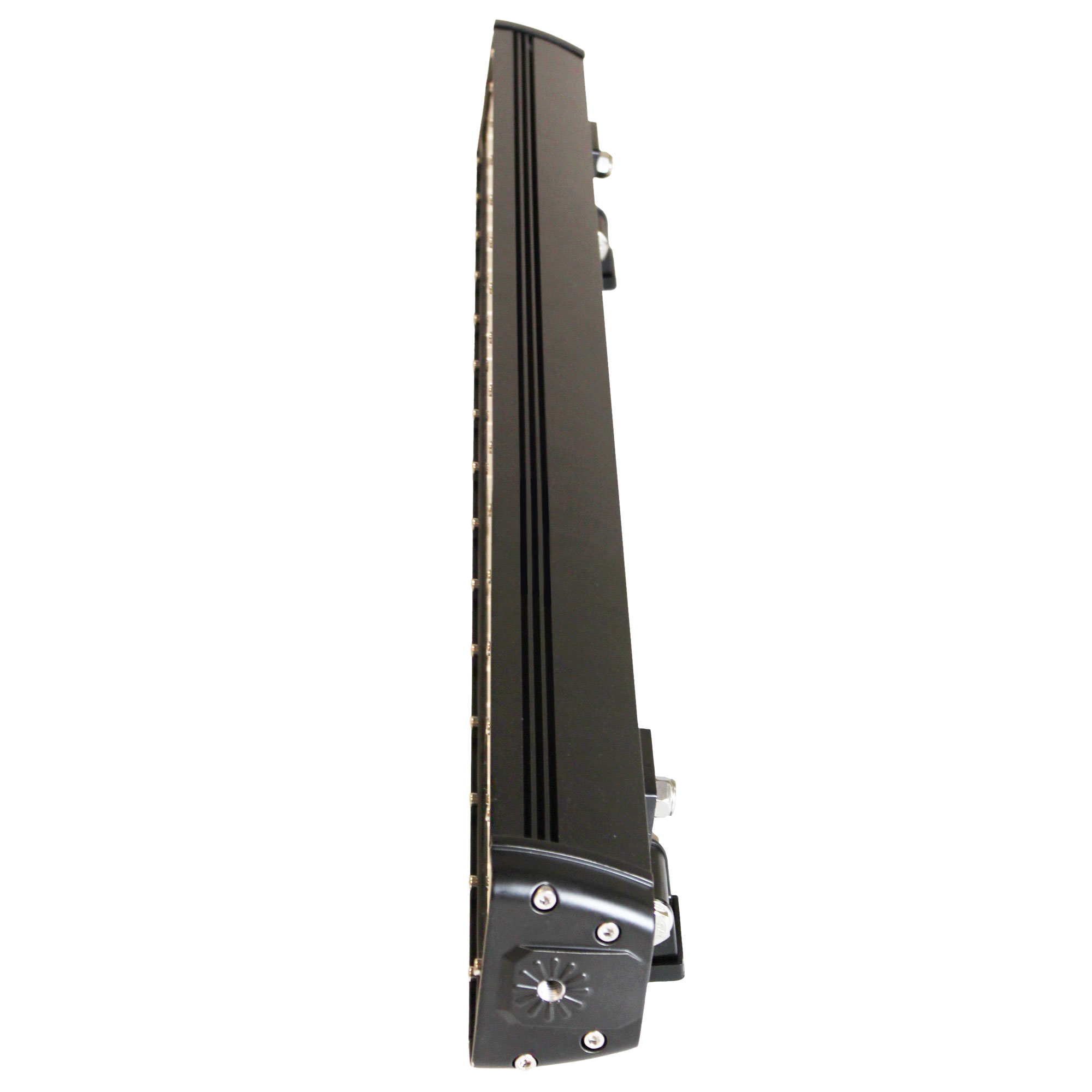

DR Series 30” Class 180 Watt LED Light Bar. This double row light bar features white LED’s in a combo (flood + spot) beam pattern with a clear lens.
Great for mounting on your ATV/UTV or Side by Side. Attach almost anywhere with Jammy OffRoad multi-mount brackets that can be bolted or screwed on, even on curved surfaces like a hood or roof. Connect with simple 2-Wire setup using included DT04-2P connectors and generous 12″ lead wire.
Built for extreme durability in the harshest conditions. Max life UV protected polycarbonate affixed to aluminum housing using Jammy OffRoad’s perma-seal bonding process creates a fixture with IP69K rating that is literally hammer proof.
- Rated Power: 180 Watts
- Actual Power: 168 Watts
- Amps at 12.5 Volts: 13.44
- LED: 60x OSRAM 3-Watt
- Lumens (effective): 16,902
- Lux at 10 Meters: 1,537
- Beam Distance at 1 Lux: 1,550 feet
- Max Beam Distance (0.25 lx): 3,100 Feet
- See dimensional chart for actual size
Click Here for help understanding power figures, beam info,
and IP rating
- OSRAM LED’s and Thermally Regulated Electronics

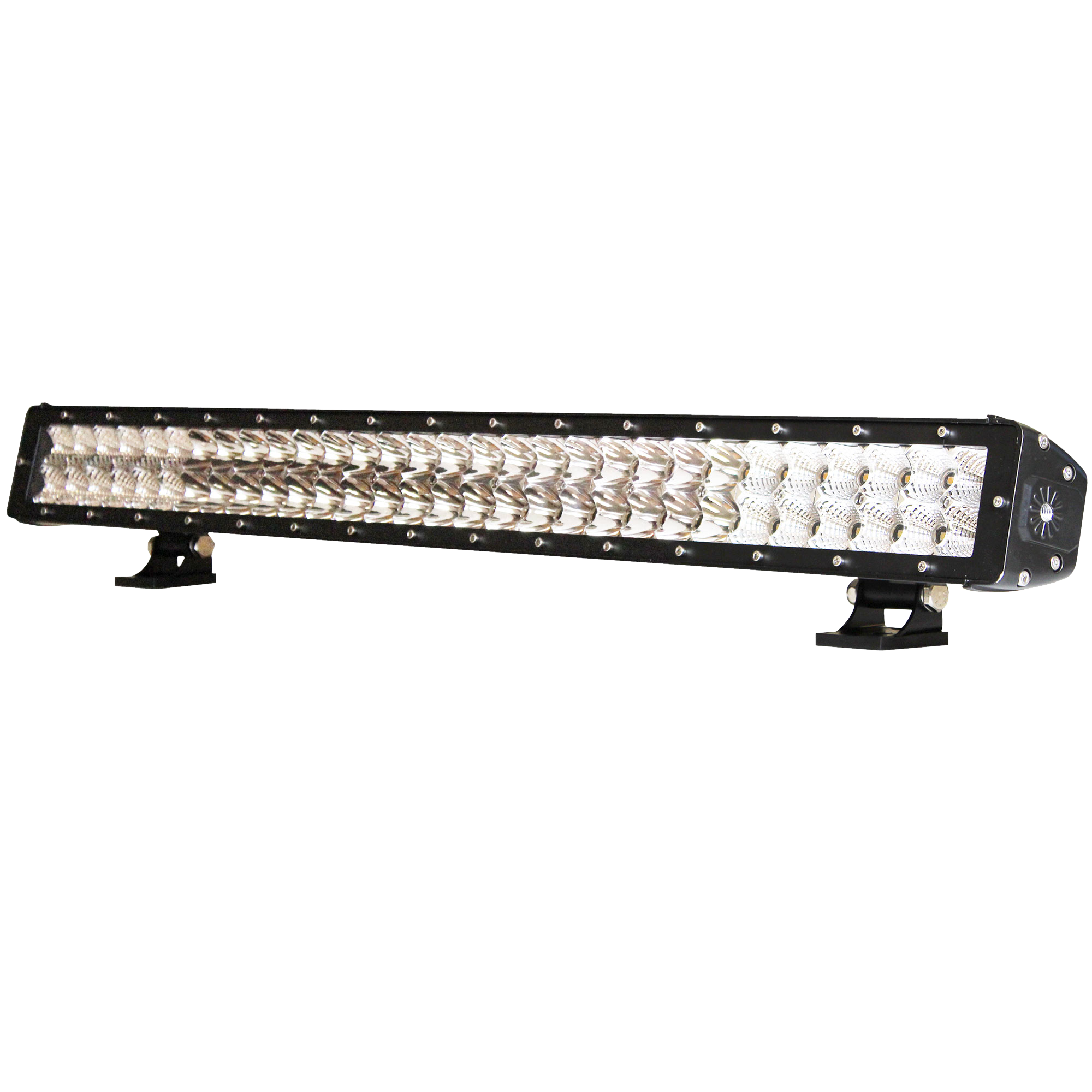

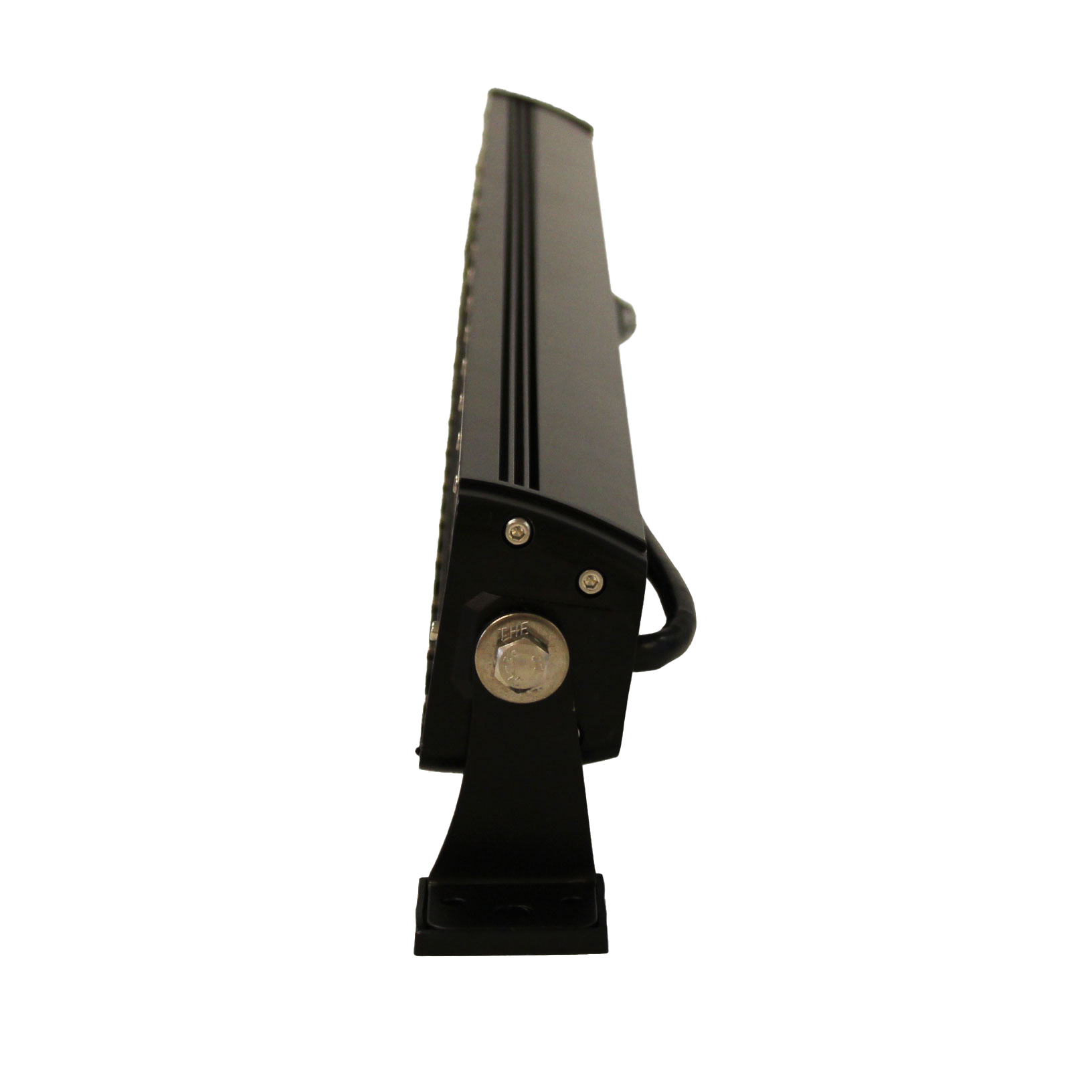

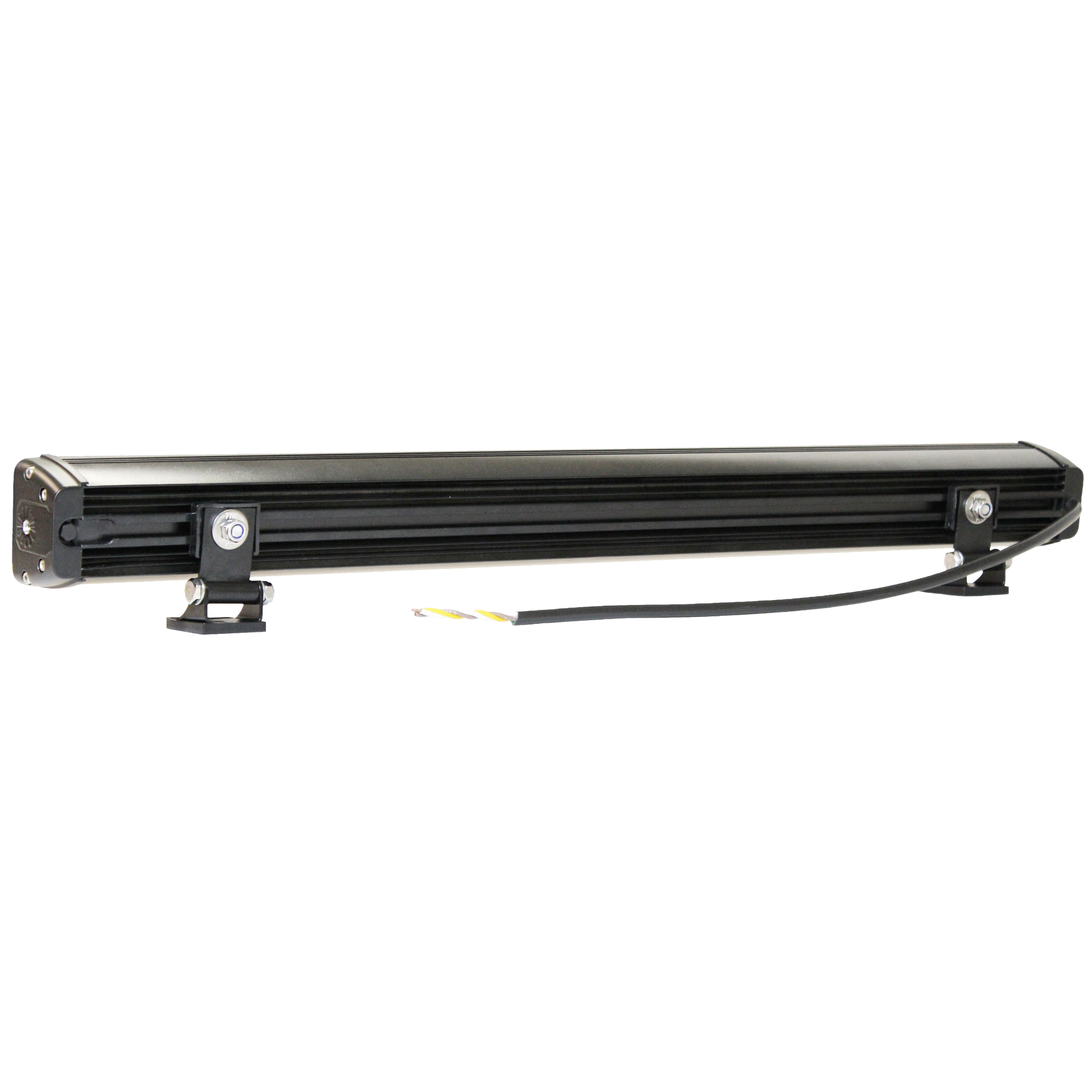

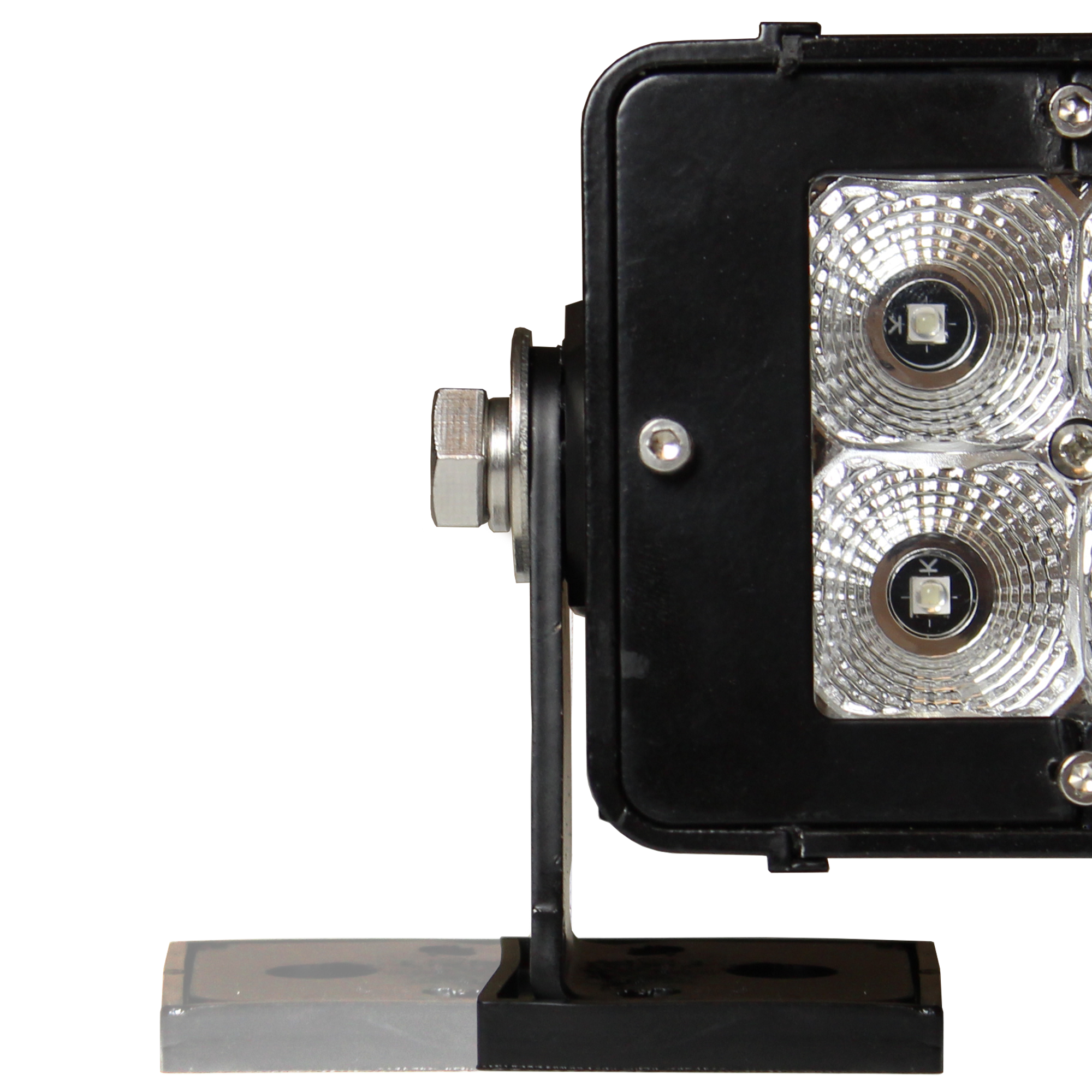

- Included Side Mount & Adjustable Rear Mount Brackets
- Rubber (PVC) Isolating Pads for Brackets
- Low Profile Aluminum No-Whistle Housing
- Breather Vent to Prevent Moisture Buildup
- Wide 10-30 Volt Operating Range
- Top Grade Polycarbonate Lens
- Multi-Core Jacketed Lead Wire
- Stainless Steel Hardware
- IP69K Rated
