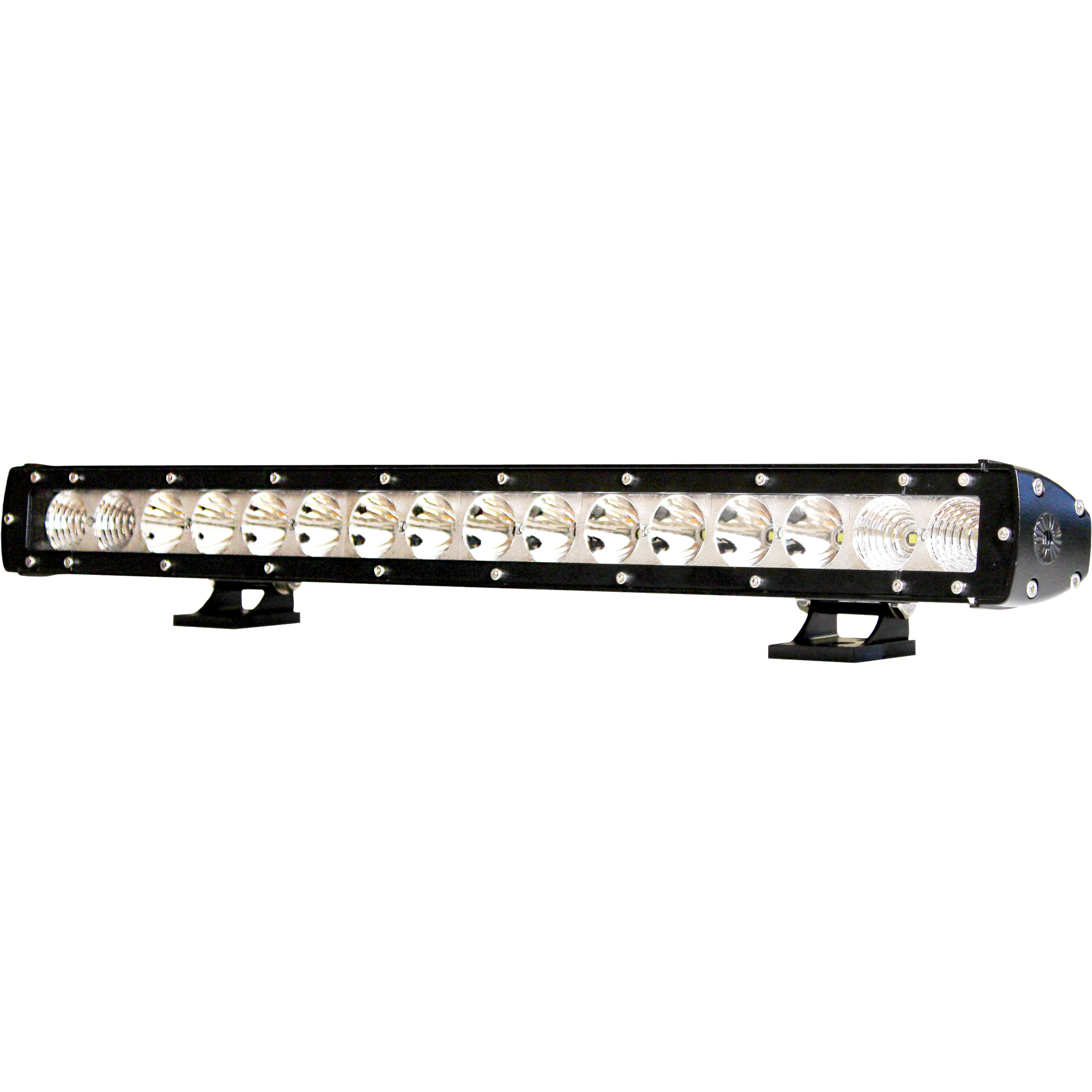

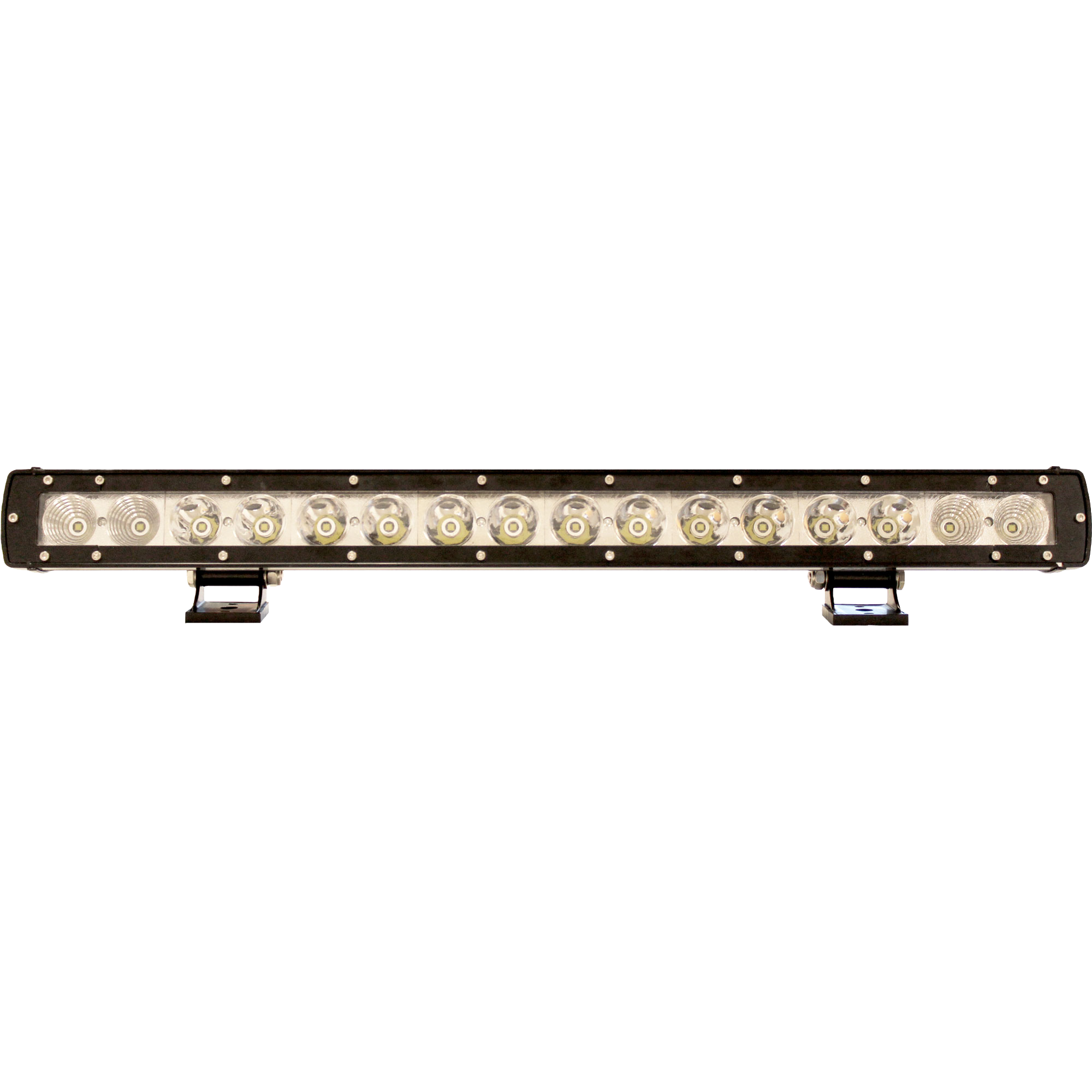

SR Series 20” Class 80 Watt LED Light Bar. This single row light bar features white 5-Watt OSRAM LED’s in a combo beam pattern with a clear lens that makes for a thin, versatile, and capable light bar for all general purpose uses. The combo beam offers close and wide light as well as long range illumination.

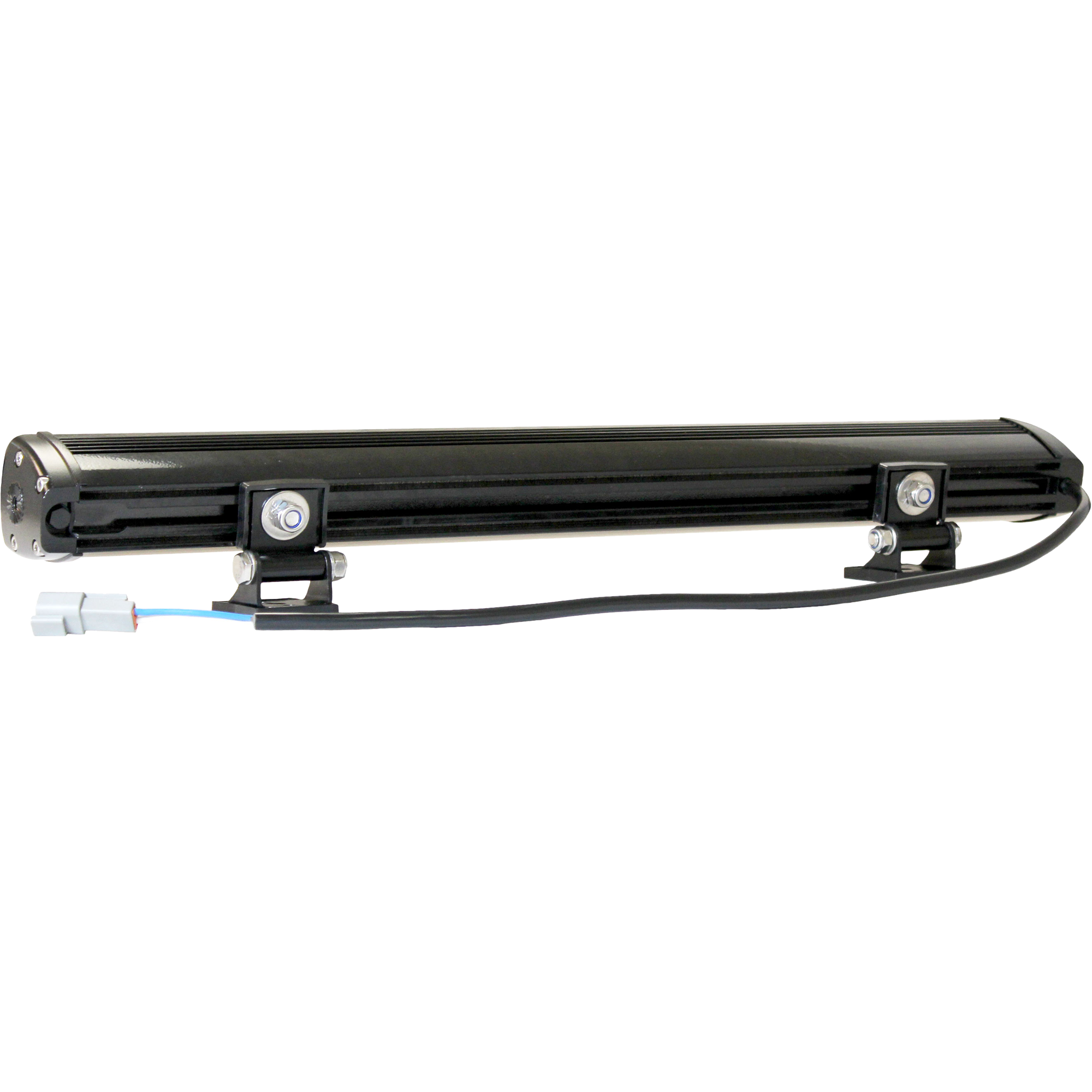

Great for mounting on your ATV/UTV, Side by Side, or even under your truck bumper. Attach almost anywhere with Jammy OffRoad multi-mount brackets that can be bolted or screwed on, even on curved surfaces like a hood or roof. Connect with simple 2-Wire setup using included DT04-2P connectors and generous 18″ lead wire.
Built for extreme durability in the harshest conditions. Max life UV protected polycarbonate affixed to aluminum housing using Jammy OffRoad’s perma-seal bonding process creates a fixture with IP69K rating that is literally hammer proof.
- Rated Power: 80 Watts
- Actual Power: 72 Watts
- Amps at 12.5 Volts: 5.76
- LED: 8x OSRAM 5-Watt
- Lumens (effective): 7,086
- Lux at 10 Meters: 859
- Beam Distance at 1 Lux: 852
- Max Beam Distance (0.25 lx): 1,903 Feet
- See dimensional chart for actual size
Click Here for help understanding power figures, beam info,and IP rating
- OSRAM LED’s and Thermally Regulated Electronics
- Included Side Mount & Adjustable Rear Mount Brackets
- Rubber (PVC) Isolating Pads for Brackets
- Low Profile Aluminum No-Whistle Housing
- Breather Vent to Prevent Moisture Buildup
- Wide 10-30 Volt Operating Range
- Top Grade Polycarbonate Lens
- Multi-Core Jacketed Lead Wire
- Stainless Steel Hardware
- IP69K Rated
